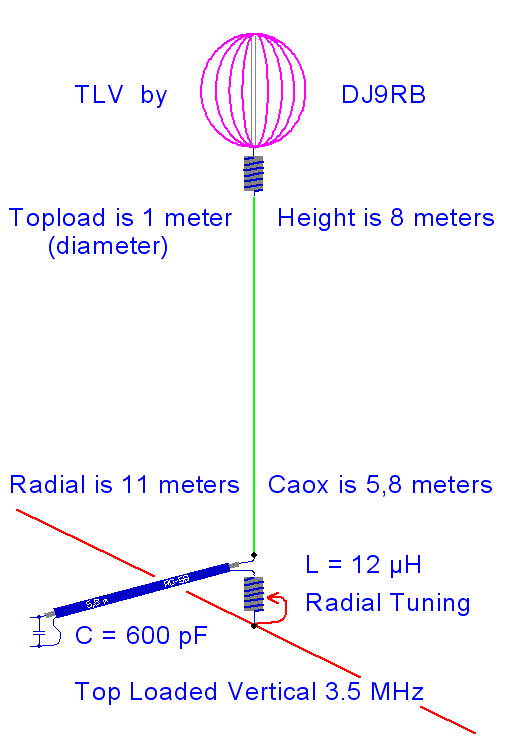

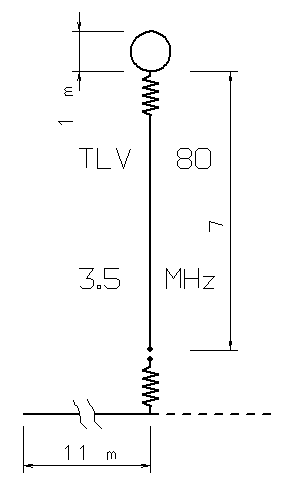

Top Loaded Vertical Antenna using 2 elevated radials

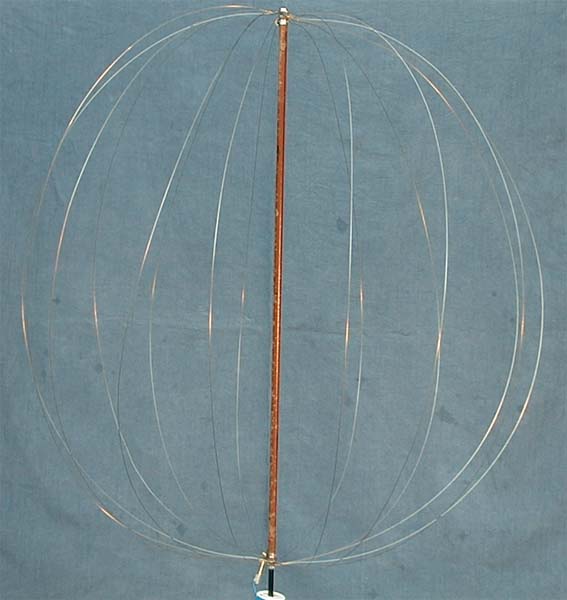

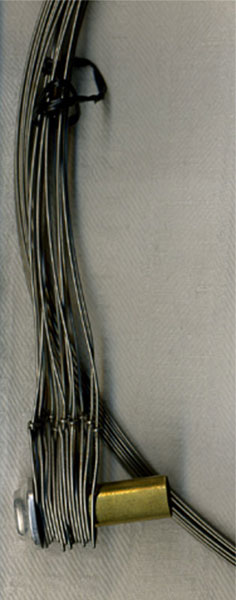

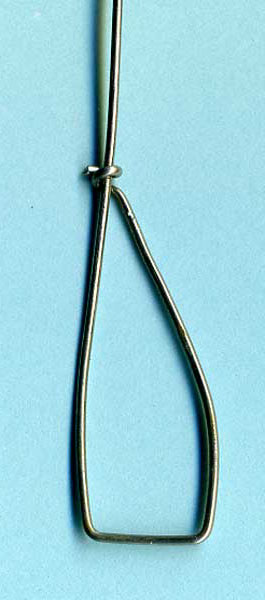

Sphere:
Diameter is 1 meter
Wire is stainless
Wire diameter is 1 mm

Loadingcoil:
Diameter is 51 mm
34 turns
Wire is silver
Diameter 1 mm (PTFE 1.5 mm)

Radial Tuning Coil:
Diameter is 60 mm
Wire diameter is 1.5 mm
Radials are 1 meter above GND






Top Load is a Sphere

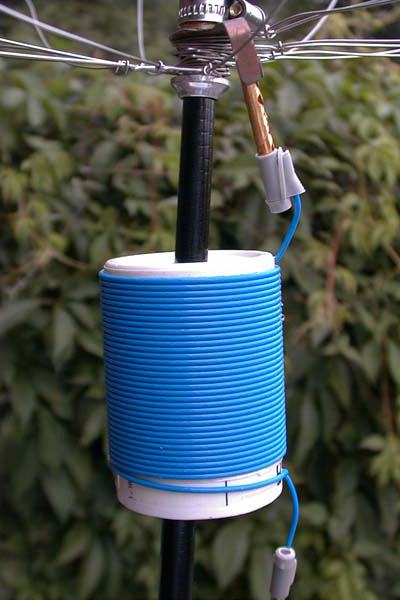

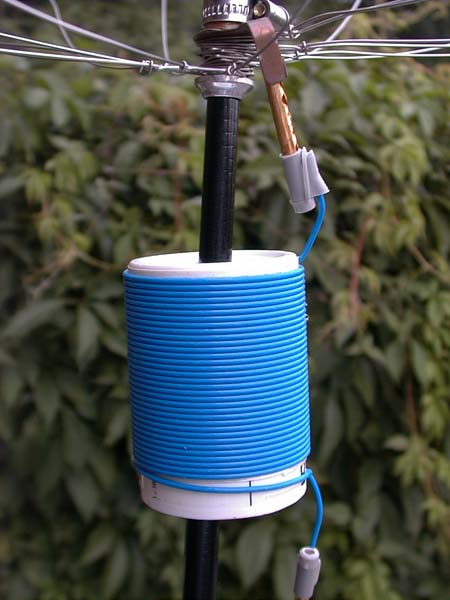

Loading coil

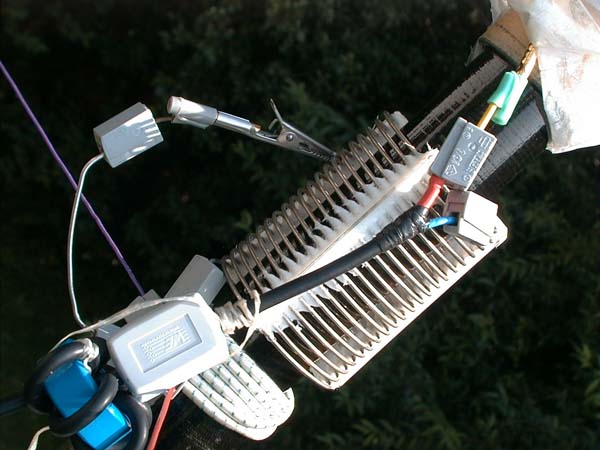

Tuning coil for the radials

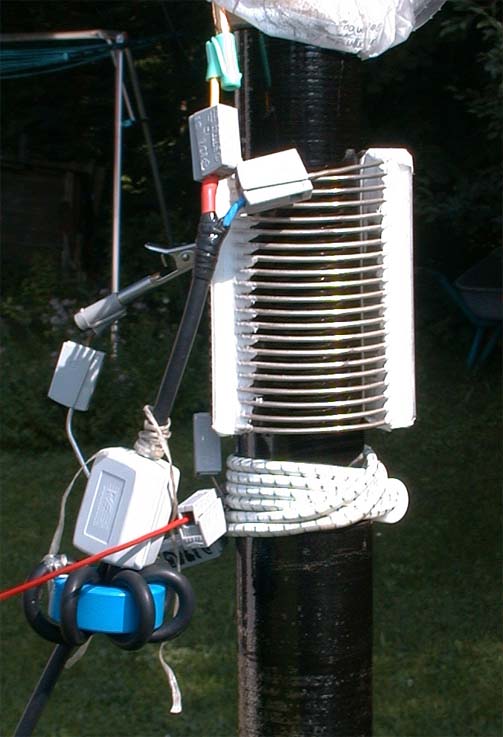

Coil for the 2 radials and the tapping point







The TLV antenna is mounted on a

Fiberglas - Teleskop - Mast

Height of mast is 8 meters

Basement is a wood cross

To fix the coil I am using a rubber

cord wound around the mast

Mounting time is aproxemitly 30 minutes

and result is a ufb DX antenna

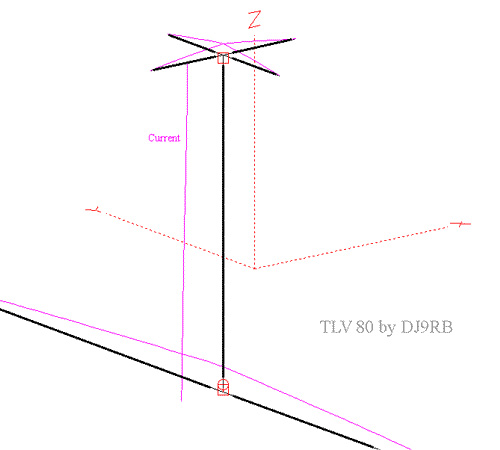

Current distribution



Z = 20 up to 30 Ohms (3.5 MHz)

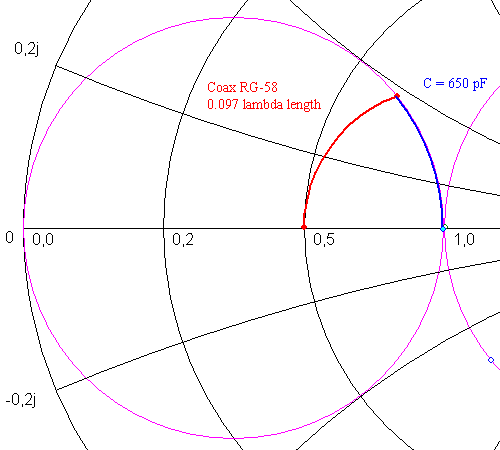

Matching Network
