Impedance Magnitude Z, Reactance X, Resistance R     Z - X - R

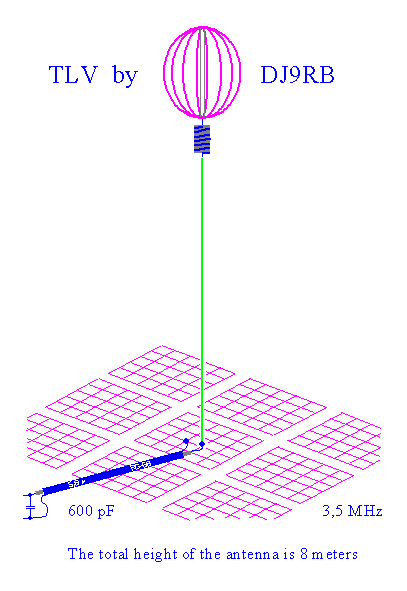

Use 20 segments of stainless steel-wire of 1mm diameter for the SPHERE




The ground mesh ( Kupferdrahtnetz ) should be a square of 3m x 3m



The weight of this portable VERTICAL is less than 1kg, including the ground mesh.
The weight of the telescoping fiberglass fishing pole is another 1kg.
The pole expands from 1.5 meters to 8 meters.

Top Load & Fiberglass Mast
